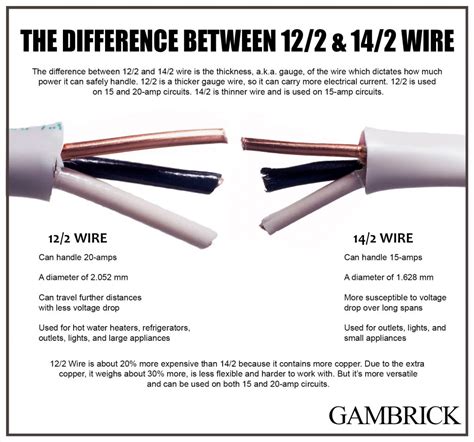

12/2 Vs 14/2: Which Wire Gauge To Choose?

When it comes to any electrical project, choosing the right wire gauge is crucial. The wire gauge determines the amount of current that can safely pass through the wire without causing damage or a potential fire hazard. Two common wire gauges used in residential electrical wiring are 12/2 and 14/2. In this article, we will explore the differences between 12/2 and 14/2 wires, their applications, and which one is the best fit for your specific needs.

Section 1: Wire Gauge Basics

Before we dive into the differences between 12/2 and 14/2 wires, let's go over some basics about wire gauges. Wire gauges are measured by American Wire Gauge (AWG) numbers, with lower numbers indicating thicker wires. The thickness of the wire is important because it affects the amount of current that can flow through it. If a wire is too thin for the amount of current it is carrying, it can heat up and cause damage or a fire.

Section 2: What is 12/2 Wire?

12/2 wire has an AWG rating of 12 and consists of two insulated wires (a black and a white wire) and a bare copper ground wire. The wires are housed in a sheath, typically made of PVC, and are rated for use in circuits with a maximum voltage of 600 volts.

Section 3: What is 14/2 Wire?

14/2 wire has an AWG rating of 14 and also consists of two insulated wires (a black and a white wire) and a bare copper ground wire. Like 12/2 wire, it is housed in a PVC sheath and is rated for use in circuits with a maximum voltage of 600 volts.

Section 4: Differences in Current Carrying Capacity

One of the main differences between 12/2 and 14/2 wire is their current carrying capacity. 12/2 wire can carry more current than 14/2 wire, making it suitable for use in higher-powered appliances and heavier-duty circuits. For example, 12/2 wire is often used for kitchen appliances like refrigerators or ovens, while 14/2 wire may be used for lighting circuits or outlets in other rooms.

Section 5: Differences in Applications

Due to their different current carrying capacities, 12/2 and 14/2 wires are typically used in different applications. As previously mentioned, 12/2 wire is better suited for high-powered appliances and heavier-duty circuits. It is also commonly used for electric water heaters and air conditioning systems. On the other hand, 14/2 wire is often used for lighting and outlet circuits in residential homes.

Section 6: Length of Run

The length of the wire run also plays a role in determining which wire gauge to choose. The longer the run, the more resistance the wire will have, which means there will be a voltage drop. If the wire is too thin for the length of the run, this voltage drop can become significant and cause problems. In general, if a circuit requires a wire run longer than 50 feet, it is recommended to use 12/2 wire to prevent voltage drop issues.

Section 7: Ampacity Ratings

Another factor to consider when choosing a wire gauge is the ampacity rating. This is the maximum amount of current that a wire can safely carry without overheating or causing damage. Both 12/2 and 14/2 wires have their own ampacity ratings, which are determined by the National Electric Code (NEC). According to the NEC, a 12/2 wire can safely carry up to 20 amps, while a 14/2 wire can safely carry up to 15 amps.

Section 8: Cost Differences

Cost is also a factor to consider when choosing between 12/2 and 14/2 wires. Generally, 12/2 wire is more expensive than 14/2 wire due to its thicker gauge and ability to carry more current. However, the cost difference may not be significant for smaller projects or shorter wire runs.

Section 9: DIY vs Professional Installation

If you are planning on doing an electrical project yourself, it is important to understand that there are certain limitations to what you can do without a professional license. In general, if your project involves anything beyond basic wiring, such as rewiring an entire room or installing a new circuit, it is recommended to hire a licensed electrician. A licensed electrician will have the knowledge and expertise to choose the appropriate wire gauge and ensure the project is completed safely and up to code.

Section 10: Building Codes

Building codes vary by location and may dictate which wire gauge is required for certain applications. It is important to research local building codes before ing any electrical project to ensure compliance and safety.

Section 11: Upgrading Electrical Systems

If you are upgrading an existing electrical system, it is important to understand that you may need to upgrade the wire gauge as well. This is especially true if you are adding new appliances or increasing the load on the circuit. Consult with a licensed electrician to determine if a wire gauge upgrade is necessary.

Section 12: Summary of Differences

To summarize, 12/2 wire has a thicker gauge and can carry more current than 14/2 wire. It is better suited for high-powered appliances and heavier-duty circuits. On the other hand, 14/2 wire is typically used for lighting and outlet circuits in residential homes. Cost, length of wire run, ampacity ratings, DIY vs professional installation, building codes, and upgrading electrical systems are all factors to consider when choosing between 12/2 and 14/2 wires.

Section 13: FAQ

Q1. What is the difference between 12/2 and 14/2 wire?

A1. The main difference between 12/2 and 14/2 wire is their current carrying capacity. 12/2 wire can carry more current than 14/2 wire, making it suitable for use in higher-powered appliances and heavier-duty circuits.

Q2. Can I use 14/2 wire for kitchen appliances?

A2. No, it is not recommended to use 14/2 wire for high-powered kitchen appliances like refrigerators or ovens. These require a thicker wire gauge, such as 12/2 wire.

Q3. Can I use 12/2 wire for lighting circuits?

A3. Yes, 12/2 wire can be used for lighting circuits. However, it may be more costly than using 14/2 wire and may not be necessary unless the circuit requires a longer wire run.

Q4. How do I determine which wire gauge to use for my project?

A4. Factors to consider when determining which wire gauge to use include the current carrying capacity required, length of wire run, ampacity rating, cost, building codes, and whether the project requires professional installation.

Q5. Can I use 14/2 wire for air conditioning systems?

A5. No, air conditioning systems typically require a thicker wire gauge, such as 12/2 wire, due to their higher power needs.

Q6. Does the sheath material matter for 12/2 and 14/2 wire?

A6. Not necessarily. Both 12/2 and 14/2 wire are typically housed in a PVC sheath, but other materials may be used as well. The important factor is the wire gauge and current carrying capacity.

Q7. Can I use 12/2 wire for outlets and lighting circuits?

A7. Yes, you can use 12/2 wire for outlets and lighting circuits. However, it may be more expensive than using 14/2 wire and may not be necessary unless the circuit requires a longer wire run or higher current carrying capacity.

Q8. Can I mix 12/2 and 14/2 wire in the same circuit?

A8. No, it is not recommended to mix different wire gauges in the same circuit. This can cause issues with current flow and potentially create a safety hazard.

Q9. Do I need to upgrade my wire gauge when adding new appliances?

A9. It depends on the power needs of the new appliances. Consult with a licensed electrician to determine if a wire gauge upgrade is necessary.

Q10. What is the maximum voltage rating for 12/2 and 14/2 wire?

A10. Both 12/2 and 14/2 wire are rated for use in circuits with a maximum voltage of 600 volts.

Choosing the right wire gauge is essential for any electrical project, and understanding the differences between 12/2 and 14/2 wire can help you make an informed decision. Factors like current carrying capacity, length of wire run, ampacity rating, cost, and building codes all play a role in determining which wire gauge to use. Consulting with a licensed electrician is always recommended for more complex projects. Remember, safety should always be the top priority when working with electricity.
